Extended Description

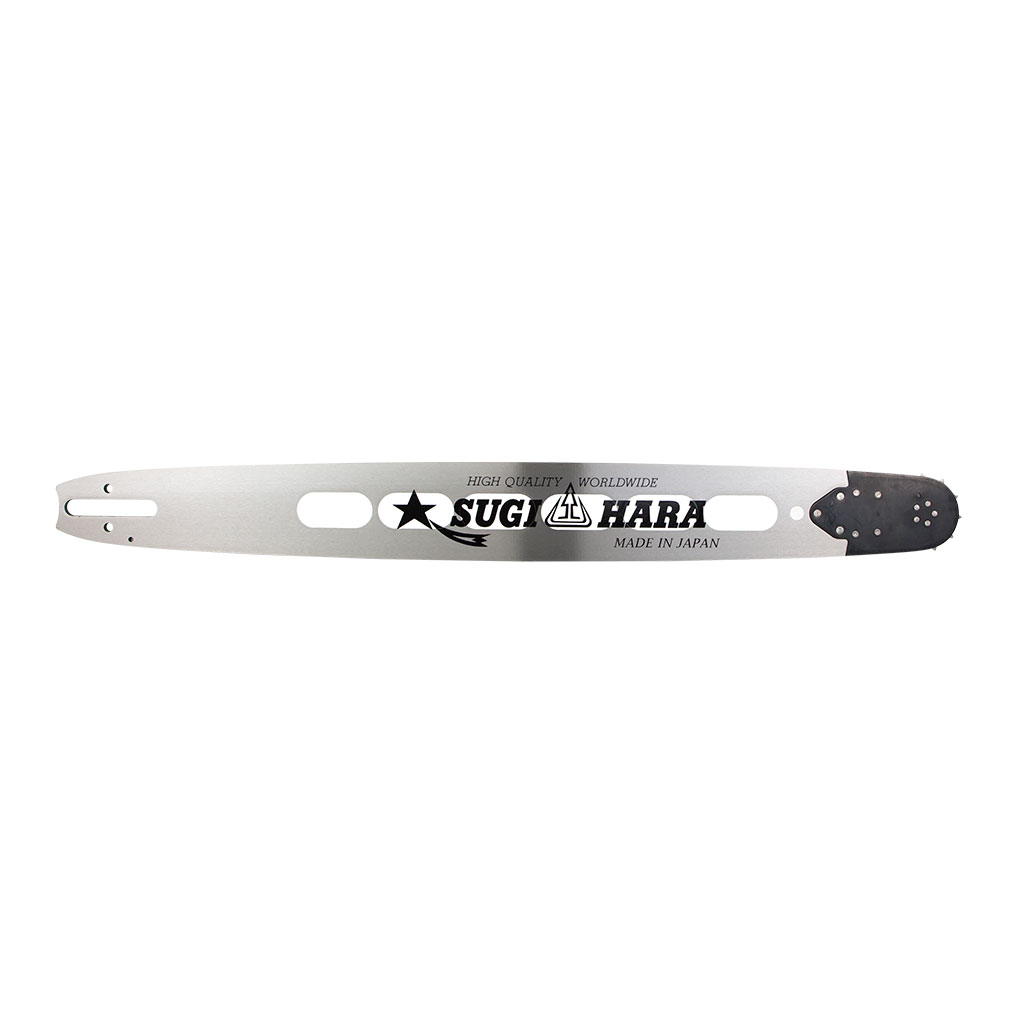

• Description: PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 25" x 3/8" x .063" x 84 DL or
• *85DL, CD Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan
• Editorial: The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are
• manufactured In Japan from a single piece of steel. Manufactured the same way as
• the Sugihara Red Label Pro Solid bars but with sections removed and filled with a
• rigid, weight reducing resin. One of the best guide bars in the world today
• Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular
• version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars
• are sought after for their high performance and light-weight. They are easily
• recognised by the white resin sections and black label. The most striking looking
• bar on the market.
• Replaces OEM: Oregon 253RNDD025
• Sugihara - Diatop ST2U-3Q63-A
• Features: PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily
• recognised by the white resin sections and black label.
• Manufactured the same way as the Sugihara Red Label Pro Solid bars but with
• sections removed and filled with a rigid, weight reducing white resin.
• This guide bar weighs just 1390g
• Professional premium quality, reduced weight replaceable sprocket nose guide bar.
• High durability sprocket nose.
• Polished lacquered finish.
• Nose fastens with three rivets, and is securely held by wide and strong overlapping
• ears.
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
• body.
• Super tough steel, heat treated up to 4 times on different parts of the guide bar,
• provides superior bar-body strength and tough rails with excellent resistance to
• wear and chipping.
• PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• Made in Japan.
• All PROKUT guide bars are reversible for longer life.
• Length: (in): 25"
• Length: (cm): 63 cm
• Pitch: 3/8"
• Bar Type: PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar
• Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
• Bar Mount Type: CD
• Gauge: .063"
• Drive Link Count: 84 (some) or *85 (refer to notes below on Stihl).
• Teeth: 11 Tooth sprocket nose
• Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
• Fits: *Stihl (*refer to notes below), 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum,
• 038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056,
• 056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C,
• MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS
• 390, MS390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460
• Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum MS 661, MS661
• RC-M, MSE 220 C, MSE 250 C.
• Product Line Notes: Please refer to the product notes below, please also check your saw carefully prior
• to ordering, some of these saw models were also released fitted with a .404”
• pitch chain.
• Standard Pack Quantity: 1
• Note: Replaces our part number OMK253RNDD025
• Please Note: *Stihl models fitted with this CD mount guide bar require either an 85 drive link
• chain to be fitted for use with the standard 8-tooth rim sprocket (part number
• GAF43S085DL for a semi-chisel chain loop or our full chisel chain loop part number
• GAF43F085DL) or to keep using the standard 84 drive link chain the sprocket must be
• changed to a 7-tooth rim sprocket (our part number GAF35464 for a complete rim
• sprocket system or part number GAF68120 for the 7-tooth rim only). For all other
• brands and models use with our semi-chisel chain loop part number GAF43S084DL or
• our full-chisel chain loop part number GAF43F084DL. For a PROKUT PLATINUM SUGIHARA
• solid professional replaceable sprocket nose guide bar option use our part number
• GAFCD2543RSP. For a standard PROKUT solid professional replaceable sprocket nose
• guide bar option (which uses 84 DL chain) use our part number GAFCD2443RS.
• Brand: PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories,
• Product Line: Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar,
• sprocket nose guide bar,
