Extended Description

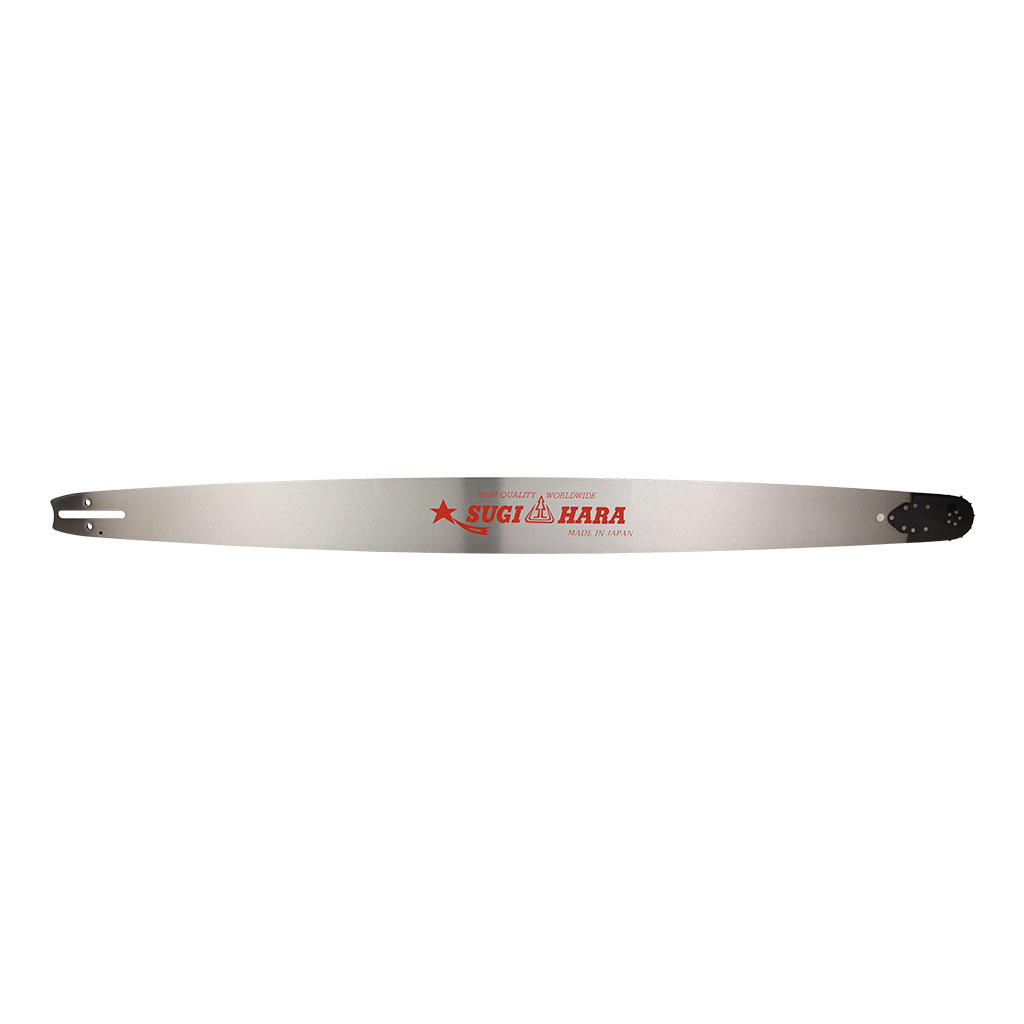

• Description: PROKUT PLATINUM SUGIHARA 42" x 3/8" x .063" x *137 DL, CB Mount, Solid Professional
• Replaceable Sprocket Nose Guide Bar - Made In Japan
• Replaces OEM: Oregon 423RNDD009
• Sugihara - Diatop VT2T-3Q105-A
• Features: Professional premium quality, solid, replaceable sprocket nose guide bar.
• Manufactured from a single piece of steel, featuring superior durability and
• stiffness characteristics.
• High durability sprocket nose.
• Polished lacquered finish.
• Nose fastens with three rivets, and is securely held by wide and strong overlapping
• ears.
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
• body.
• Super tough steel, heat treated up to 4 times on different parts of the guide bar,
• provides superior bar-body strength and tough rails with excellent resistance to
• wear and chipping.
• PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• Made in Japan.
• All PROKUT guide bars are reversible for longer life.
• Length: (in): 42"
• Length: (cm): 107 cm
• Pitch: 3/8"
• Bar Type: PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar
• Chain / Cutter Type: 43S / Semi-Chisel or 43F / Full-Chisel
• Bar Mount Type: CB
• Gauge: .063"
• Drive Link Count: *137 (*please refer to notes after each fitment application)
• Teeth: 11 Tooth sprocket nose
• Recommended Saw Sizes: 50 cc to 100 cc (3.0 to 6.0 cu. in.)
• Fits: *Husqvarna 180, 181, 185, 266, 268, 272, 281, 285, 288, 288 XP LITE, 298, 365, 371,
• 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 XPG, 385 XPW, 390 XP,
• 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, 480, 562 XP, 562 XPG,
• 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP AUTO TUNE, 576 XPG, 576 XPW, 1100,
• 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 model chainsaws.
• Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
• guide bar uses an 137 drive link chain and so the existing chain will require
• lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
• applications.
• Fits: *Jonsered 670 WEST COAST, 2083II. model chainsaws.
• Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
• guide bar uses an 137 drive link chain and so the existing chain will require
• lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
• applications. Note: Please check your saw carefully prior to ordering, some of the
• above saw models were also released fitted with a .404" pitch chain.
• Fits: *Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000, DCS 9010 FL model
• chainsaws.
• Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
• guide bar uses an 137 drive link chain and so the existing chain will require
• lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
• applications. Note: Please check your saw carefully prior to ordering, some of the
• above saw models were also released fitted with a .404" pitch chain.
• Fits: *Poulan / Poulan Pro 415, 425, 445, 475, 505 model chainsaws.
• Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
• guide bar uses an 137 drive link chain and so the existing chain will require
• lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
• applications. Note: Please check your saw carefully prior to ordering, some of
• these saw models were also released fitted with a .404" pitch chain.
• Fits: *Shindaiwa 680, 695, 757, 757C and 757W model chainsaws.
• Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
• guide bar uses an 137 drive link chain and so the existing chain will require
• lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
• applications.
• Fits: *Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws.
• Product Line Notes: *Please note these models were fitted with 135 drive link chains from new. This
• guide bar uses an 137 drive link chain and so the existing chain will require
• lengthening (or replacing) to use this PROKUT Platinum Sugihara guide bar on these
• applications.
• Standard Pack Quantity: 1
• Note: Replaces our part number OMK423RNDD009 (which was 135 DL)
• Please Note: Use with our semi-chisel chain loop part number GAF43S137DL or our full-chisel
• chain loop part number GAF43F137DL. For a standard PROKUT solid professional
• replaceable sprocket nose guide bar option which uses a 135 drive link chain use
• our part number GAFCB4243RS.
• Brand: PROKUT PLATINUM SUGIHARA, GA Forestry Accessories
• Product Line: Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocket
• nose guide bar,
