Extended Description

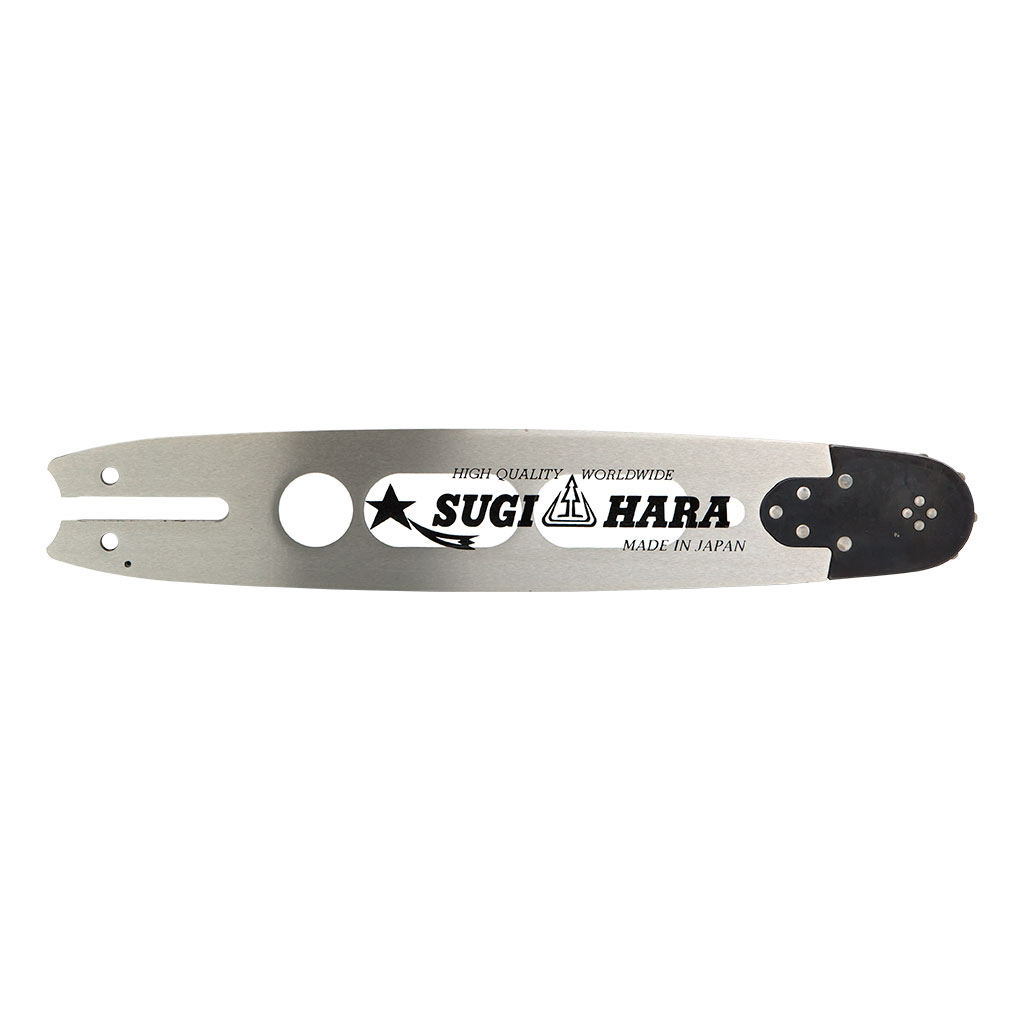

• Description: PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 12" x 3/8" Low Profile x .050" x
• 44 DL, AD Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan
• Editorial: The PROKUT Platinum Sugihara Reduced Weight Professional guide bars are
• manufactured In Japan from a single piece of steel. Manufactured the same way as
• the Sugihara Red Label Pro Solid bars but with sections removed and filled with a
• rigid, weight reducing resin. One of the best guide bars in the world today
• Sugihara Reduced Weight Pro guide bars are proving to be an extremely popular
• version amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide bars
• are sought after for their high performance and light-weight. They are easily
• recognised by the white resin sections and black label. The most striking looking
• bar on the market.
• Replaces OEM: Oregon 120SDEA074, 120SPEA074, 120SXEA074.
• Sugihara - Diatop SL2U-0N30-A.
• Features: PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easily
• recognised by the white resin sections and black label.
• Manufactured the same way as the Sugihara Red Label Pro Solid bars but with
• sections removed and filled with a rigid, weight reducing white resin.
• This guide bar weighs just 390g.
• Professional premium quality, reduced weight replaceable sprocket nose guide bar.
• High durability sprocket nose.
• Polished lacquered finish.
• Nose fastens with three rivets, and is securely held by wide and strong overlapping
• ears.
• The long sprocket nose takes most of the abuse, and minimizes wear to the bars
• body.
• Super tough steel, heat treated up to 4 times on different parts of the guide bar,
• provides superior bar-body strength and tough rails with excellent resistance to
• wear and chipping.
• PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.
• Made in Japan.
• All PROKUT guide bars are reversible for longer life.
• Chain Number: 20S
• Length: (in): 12"
• Length: (cm): 30 cm
• Pitch: 3/8" Low Profile.
• Bar Type: PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar
• Chain / Cutter Type: 20S / Semi-Chisel
• Bar Mount Type: AD
• Drive Link Count: 44
• Teeth: 8 Tooth sprocket nose
• Recommended Saw Sizes: Up to 3.5 cu. in (57 cc)
• Fits: Alpina 361 and 391 model chainsaws.
• Fits: OLEO-MAC 240, 241, 244, 344, 931, 935, 1700, BLITZ, E1900, OLE 140F and OLE 300
• model chainsaws.
• Fits: STIHL 009, 009 L, 010, 011, 012, 015, 017, 018, 018 C, 019, 019 T, 020, 020 SUPER,
• 020 T, 021, 023, 023 C, 023 L, E 10, E 14, E 140, E 160, E 180, E 180 C, MS 170, MS
• 171, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T, MS
• 191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 192 T C-E, MS 193, MS 193
• T, MS 200, MS 200 T, MS 201 C, MS 201 C-E, MS 201 C-EM, MS 201 T, MS 210, MS 210 C,
• MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS 220 Q, MSE 140, MSE 140 C,
• MSE 140 C-BQ, MSE 170, MSE 170 C-BQ,
• MSE 180, MSE 180 C, MSE 180 C-BQ, MSE 200 and MSE 210 C-BQ model chainsaws. Note:
• Please check your saw carefully prior to ordering, some of these saw models were
• also released fitted with a .325” pitch chain.
• Fits: STIHL 021, 023 C, 025, 025 C, MS 230, MS 230 C, MS 230 C-BE, MS 231, MS 231 C-BE,
• MS 250, MS 250 C, MS 250 C-BE, MS 251, MS 251 C-BE, MS 251 C-BEQ, MS 251 Cmodel
• chainsaws as a NARROW Cut option.
• Fits: STIHL HT 70, HT 73, HT 75, HT 100, HT 101, HT 130, HT 131, HT 250 pole saw / pole
• pruner models and HT-KM pole saw / pole pruner Kombi Tool. Note: Please check your
• saw carefully prior to ordering, some of these saw models were also released fitted
• with a 1/4" pitch chain.
• Standard Pack Quantity: 1
• Note: Use with our semi-chisel chain loop part number GAF20S044DL.
• Other PROKUT bar options to fit the above models Include: - For a PROKUT
• semi-professional laminated multi-rivet sprocket nose guide bar option use our part
• number GAFAD1220EL. For a PROKUT consumer laminated single rivet sprocket nose
• guide bar option use our part number GAFAD1220DL.
• Please Note: Replaces our part numbers OMK120SDEA074, OMK120SPEA074, OMK120SXEA074,
• Brand: PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories,
• Product Line: Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar,
• sprocket nose guide bar,
