GREENFIELD TIE ROD END L/H

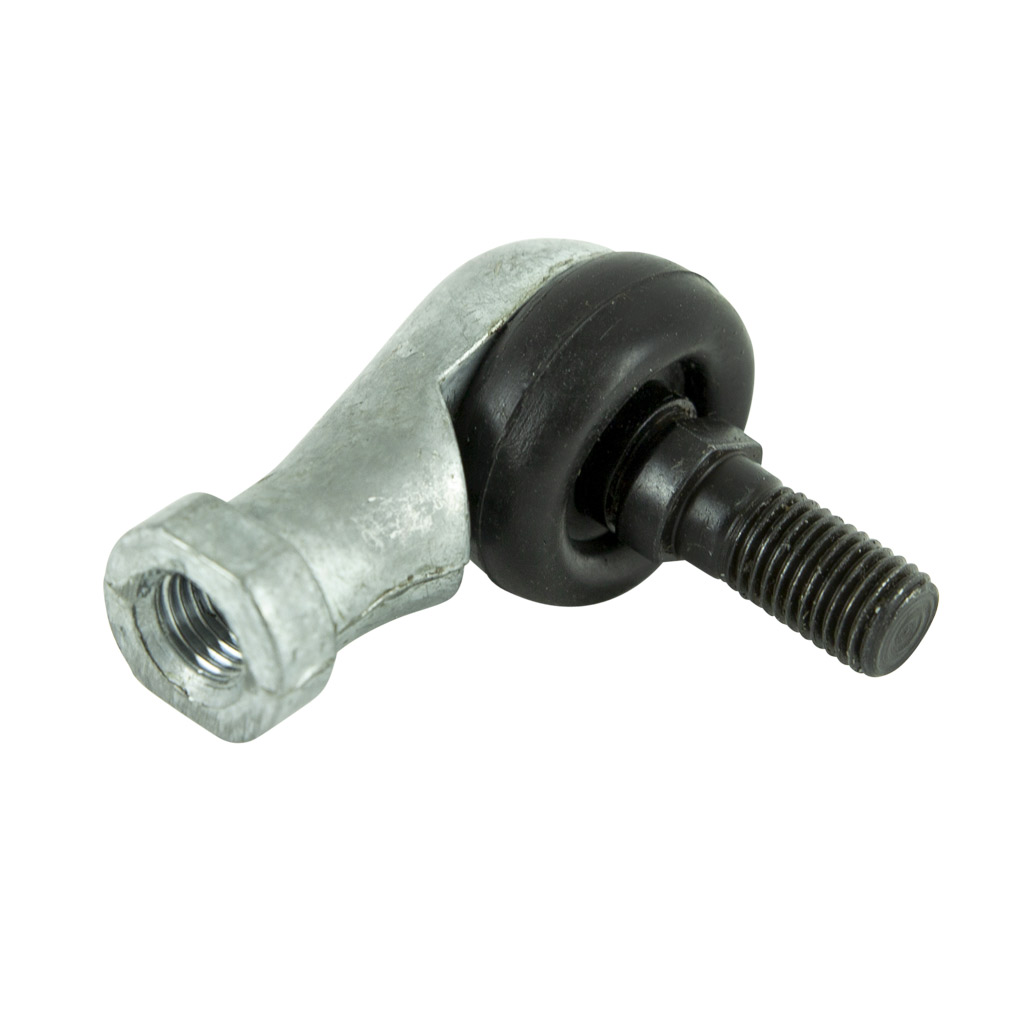

Please note: Product photos are for illustration purposes only and the actual product may differ from that shown.

CHD8242

GREENFIELD TIE ROD END L/H

Brand: GA SPARES - GA

Please login to purchase

Extended Description

  • Non-Genuine Greenfield Ball Joint / Tie Rod End, M10 x 1.25 Male Right Hand Thread
  • x M10 x 1.25 Female Left Hand Thread
  • Greenfield GT 02294, GT02294, GT2294, GT 2294
  • 2.086" (Overall Height)
  • 53 mm (Overall Height)
  • 2.303" (Overall Length)
  • 58.5 mm (Overall Length)
  • M10 x 1.25 Male Right Hand Thread x M10 x 1.25 Female Left Hand Thread x 0.787" (20
  • mm) Long
  • 25” (635 mm) cut Greenfield MiniMow ride-on lawn mower models as the tie rod end
  • that connects the steering link to the steering transfer shaft.
  • 32” (813 mm) cut Greenfield FASTCUT 17.5/32 Standard (model GT22670) and 17.5/32
  • Steel Deck (model GT22690), 25/32 Standard (model GT22875) and 25/32 Steel Deck
  • (model GT22875SD) ride-on lawn mower models as the tie rod end that connects the
  • steering link rod to the chain sprocket wheel.
  • 32” (813 mm) cut Greenfield Evolution FASTCUT32 (11.5 hp to 18 hp) ride-on lawn
  • mower models as the tie rod end that connects the steering link rod to the chain
  • sprocket wheel.
  • 34” (864 mm) cut Greenfield Evolution FASTCUT34 (13.5 hp to 26 hp), FASTCUT
  • 17.5/34 Deluxe (model GT228995), 25/34 V-Twin Deluxe (model GT22900) ride-on lawn
  • mower models as the tie rod end that connects the steering link rod to the chain
  • sprocket wheel.
  • 42” cut Greenfield FASTCUT 25/42 V-Twin Deluxe (model GT22885) ride-on lawn mower
  • models as the tie rod end that connects the steering link rod to the chain sprocket
  • wheel.
  • • Male End: M10 x 1.25 right hand thread
  • • Female End: M10 x 1.25 left hand thread
  • • Thread Length: 0.787" (20 mm)
  • • Overall Length: 2.303" (58.5 mm)
  • • Overall Height: 2.086" (53 mm)
  • 1
  • For many late model Greenfield ride-on lawn mowers use this left-hand threaded tie
  • rod end (CHD8242) with our tie rod end part number CHD8240 (the right-hand threaded
  • tie rod end that is used on selected models as the inner and outer tie rod ends for
  • the steering drag links and is also used as the tie rod end that connects the
  • steering link rod to the steering crank).
  • Greenfield Non-Genuine,
  • Ball joint, drag link end, tie rod end, rod end,
