Extended Description

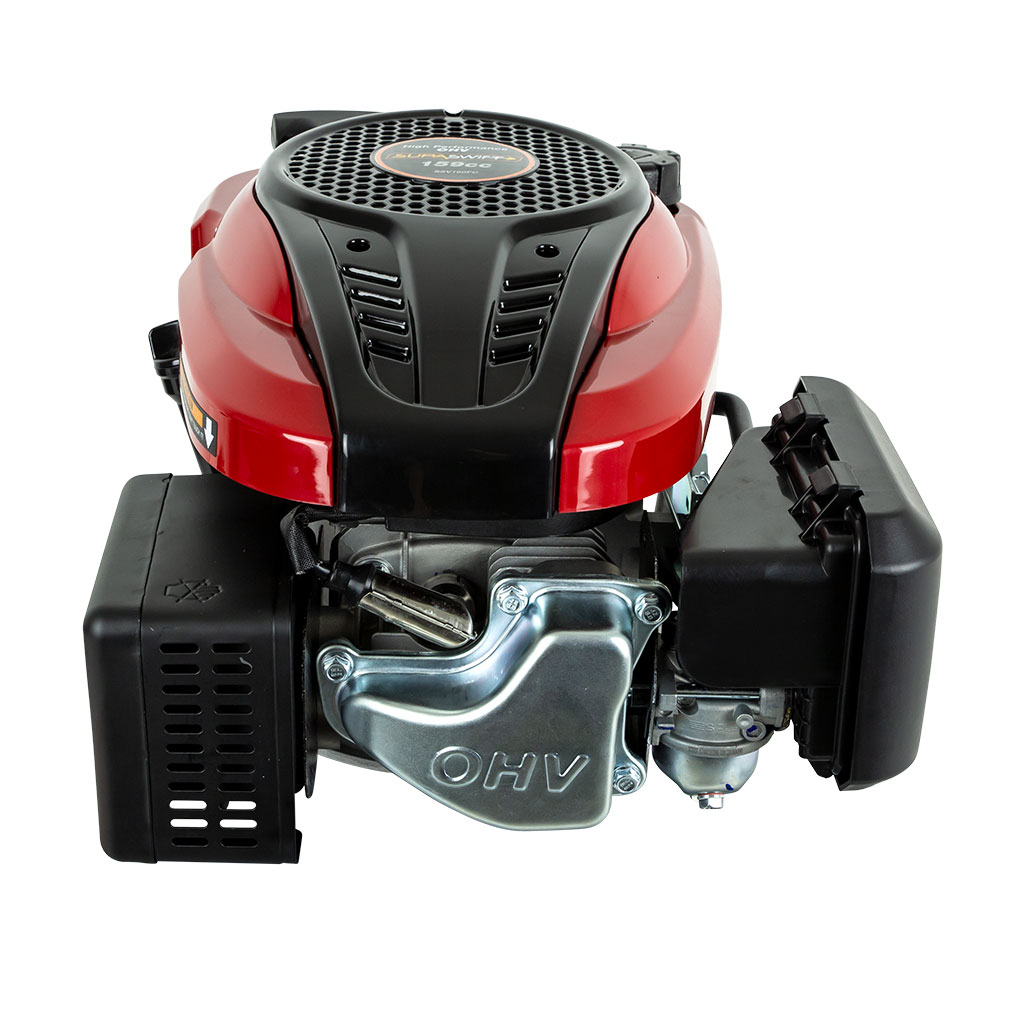

• Description: SupaSwift SSV160FC, 2.7 kw, 159 cc Single Cylinder OHV Vertical Shaft Engine
• Editorial: The SupaSwift SSV160FC is a quality small engine packed with premium features such
• as a forged crankshaft, metal cam shaft with nylon gear, cast iron cylinder liner,
• OHV design and with proven reliabilty this engine is ready to be fitted to a
• variety of out doorpower equipment includind walk-behind lawn mowers to provide
• years of trouble free service.
• Warranty: 3 years domestic, 3 months commercial. For further details on our warranty terms
• and conditions including all limitations and exclusions please refer to the
• warranty section on our web site or contact our friendly sales team.
• Features: Cast-Iron cylinder liner.
• Forged crankshaft.
• Metal camshaft with nylon gear.
• OHV design.
• Auto choke.
• Dual stage air filter.
• Proven reliability.
• Conforms to Euro 5.
• Engine: SupaSwift SSV160FC.
• Type: Air cooled, single cylinder OHV, vertical shaft, normally aspirated 4 stroke petrol
• engine.
• Displacement: 159 cc.
• Bore x Stroke: 65 mm x 48 mm
• Cylinder: Single cylinder with cast -iron cylinder liner.
• Compression Ratio: 7.6:1
• Net Power: 3.0 kW @ 3600 rpm. (Measured in accordance with SAE J1349)
• Net Torque: 8.3 Nm @ 2500 rpm. (Measured in accordance with SAE J1349)
• Engine (cc): 159 cc
• Crankshaft: Forged crankshaft
• Crankshaft Diameter: (inches) 7/8"
• Crankshaft Diameter: (mm) 22.22 mm
• PTO Shaft Type: 7/8" (22.22 mm) diameter, 3.16" (80.2 mm) long, with woodruff key.
• PTO Shaft Rotation: Anti-clockwise (from the PTO side)
• Cooling: Air cooled.
• Governor: Centrifugal mass type.
• Carburettor: Butterfly type.
• Choke: Auto choke.
• Idle Speed: 2200 ± 150 rpm / min.
• Starter: Recoil Start.
• Ignition: Transistorised Magneto Ignition.
• Lubrication: Splash.
• Oil Capacity: 550 ml (please use SAE10W/40 oil).
• Fuel: Unleaded
• Fuel Capacity: 1.0 Litre
• Fuel Filter: Yes, in-tank type fuel filter.
• Air Filter: Pleated paper cartridge type with a foam pre-filter.
• Exhaust/Muffler: Yes, comes with muffler and heat shield.
• Dry Weight: (lb) 26.01 lb.
• Dry Weight: (kg) 11.8 kg
• International Standard: Conforms to EU5
• Standard Pack Quantity: 1
• Please Note: Specifications subject to change without notice. The power rating of this engine is
• the net power output tested on a production engine and measured in accordance with
• SAE J1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque).
• Brand: SupaSwift,
• Product Line: Engine, Four Stroke Engine, SupaSwift Engine, 4 Stroke Engine,
