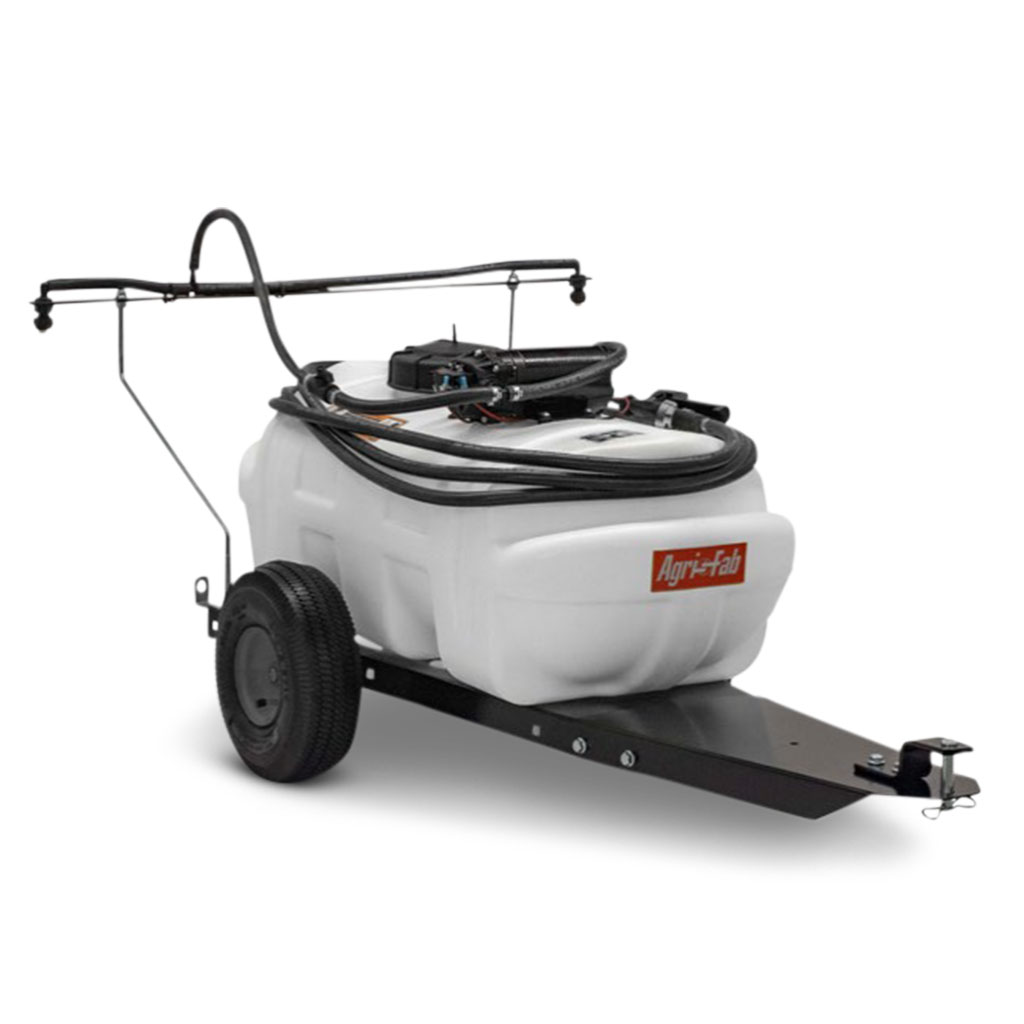

SPRAYER 60L

Please note: Product photos are for illustration purposes only and the actual product may differ from that shown.

CRT45-0587

SPRAYER 60L

Brand: UNIVERSAL GA PRODUCT

Please login to purchase

Extended Description

  • Description: Agri-Fab 60 Litre (15 Gallon) Tow-Behind Sprayer
  • Editorial: Keeping your lawn and garden looking great can be tough. Liquid fertilizers,
  • herbicides, and pesticides are convenient and effective for large lawn and garden
  • applications. The Agri-Fab sprayers quickly apply herbicides, insecticides and
  • other liquid chemicals on turf, trees and shrubs and feature a spray boom and a
  • hand wand for targeted spraying around trees and bushes.
  • Replaces OEM: Agri-Fab 45-0587
  • Height: (inches) 21"
  • Height: (mm) 533.4 mm
  • Length: (in) 51"
  • Length: (mm) 1295.4 mm
  • Weight: 54.9 lbs. (24.90 kg)
  • Width: (inches) 31.5" (60" when spray booms are extended)
  • Width: (mm) 800.1 mm (1524 mm when spray booms are extended)
  • Wheel(s): 10-Inch Pneumatic tyres for smooth transport.
  • Fits: Ideal for use with many brands of lawn tractor and ZTR ride-on lawn mowers
  • including but not limited to selected Cox, Craftsman Garden series, Lawn Series,
  • Professional Series and Yard Series, Dixon D series, Greenfield, Husqvarna CTH,
  • GTH, LR, LT, LTH, YTH, TC and TS series, John Deere CR, D100, L, LT, LX and X
  • series, Jonsered GT, LGT and YT series, McCulloch, MTD Yard Machines and Yard-Man
  • series, Murray, Poulan Pro PP series and Rover etc. lawn tractor type ride-on lawn
  • mower models.
  • Features: Capacity - 60 Litres (15 gallon).
  • Pressure - 689.47 (kPa) [100 psi], 8.32 litres (2.2 gallon) per minute pump.
  • Includes boom arms and hand wand.
  • 60-Inch spray coverage when booms are extended.
  • Adjustable spray gun nozzle - Twisting the nozzle will adjust the spray pattern
  • from a cone shaped mist to a solid stream.
  • Tow hitch - A universal hitch that quickly and easily attaches to lawn tractors and
  • ZTR's.
  • Drain - The Agri-Fab, 60 Litres (15 gallon) tow sprayer can be easily drained using
  • the convenient drain.
  • Construction - Poly tank, steel frame.
  • Assembly - Some assembly required.
  • Standard Pack Quantity: 1
  • Safety Instructions: SAFETY!
  • 1. Read the owners manual that comes with your sprayer and also the vehicle owners
  • manual before using this sprayer.
  • 2. Never allow children to operate this sprayer.
  • 3. Do not allow anyone to ride on or sit on this sprayer.
  • 4. Keep the area clear of all persons, especially small children.
  • 5. Read the chemical label before handling or mixing chemicals.
  • 6. Wear eye and hand protection and protective clothing when handling and applying
  • lawn chemicals.
  • 7. Do not spray on windy days.
  • 8. Be aware of your tractor's capabilities. Attaching this sprayer may affect your
  • tractor's braking and stability.
  • 9. STAY OFF STEEP SLOPES. Refer to the vehicle owner's manual concerning safe
  • operation on slopes.
  • 10. Operate at reduced speed on rough terrain, along ditches and on hillsides to
  • prevent loss of control.
  • Please Note: OPERATION:
  • CAUTION: Connect to a 12 V battery only.
  • Pump pressure switch: The pump pressure switch turns off the pump when it reaches
  • its maximum pressure setting. Very low flow demand may cause the switch to rapidly
  • cycle the pump on and off. Rapid on and off cycling must be limited to no more than
  • 6 times per minute. Cycling could cause the motor to heat beyond the recommended
  • maximum temperature and reduce the operational life of the pump and pressure
  • switch.
  • Sprayer controls: Boom ON-OFF valve shuts off the flow to the boom nozzles.
  • Recirculation valve: Adjust spray wand pressure and recirculation of spray material
  • to the tank.
  • Adjustable spray gun nozzle: Twisting the nozzle will adjust the spray pattern from
  • a cone shaped mist to a solid stream.
  • BEFORE STARTING:
  • 1. Attach the sprayer to the tractor hitch.
  • 2. Connect the wire harness from the switch to the pump.
  • 3. Check for leaks using plain water. Fix leaking fittings with thread tape.
  • USING THE SPRAYER: CAUTION: Wear eye and hand protection and protective clothing
  • when handling and working with lawn chemicals.
  • 1. Determine the application rate (litres per 100 sq. metre / gallons per 1,000 sq.
  • feet) based on the chemical manufacturers recommendations.
  • 2. Estimate the size of the area to be sprayed and the amount of solution that will
  • be needed. This can help avoid unneeded solution left in the tank.
  • 3. Refer to the application chart in the owner's manual enclosed with your sprayer
  • to help determine the speed required to achieve the manufacturers recommended
  • application rate.
  • 4. Use plain water to set the correct boom spraying pressure. Turn the boom valve
  • to the "ON" position. If misting occurs, gradually start closing the valve until
  • misting stops.
  • 5. Add the chemical solution to the tank, following the manufacturers
  • recommendations.
  • 6. Set the boom arms for spraying. Slide the boom bars out to the ends of the slots
  • so that the nozzles are about 40" (1 m) apart. Check height of spray tips to ground
  • (approximately 17" / 43 cm for best results). If necessary, adjust boom height by
  • raising or lower the boom on the threaded boom supports.
  • 7. Begin spraying, making each pass so that the spray pattern slightly overlaps the
  • spray pattern from the previous pass.
  • 8. Stay clear of flowers, shrubs and evergreen trees when spraying to prevent
  • contact of the solution with these sensitive plants.
  • USING THE SPRAY GUN
  • 9. Shut off the boom by turning the boom valve to "OFF".
  • Brand: Agri-Fab
  • Product Line: Sprayer, Tow-Behind Sprayer,
