BROADCAST SPREADER 85LB

Please note: Product photos are for illustration purposes only and the actual product may differ from that shown.

CRT45-0530

BROADCAST SPREADER 85LB

Brand: UNIVERSAL GA PRODUCT

Please login to purchase

Extended Description

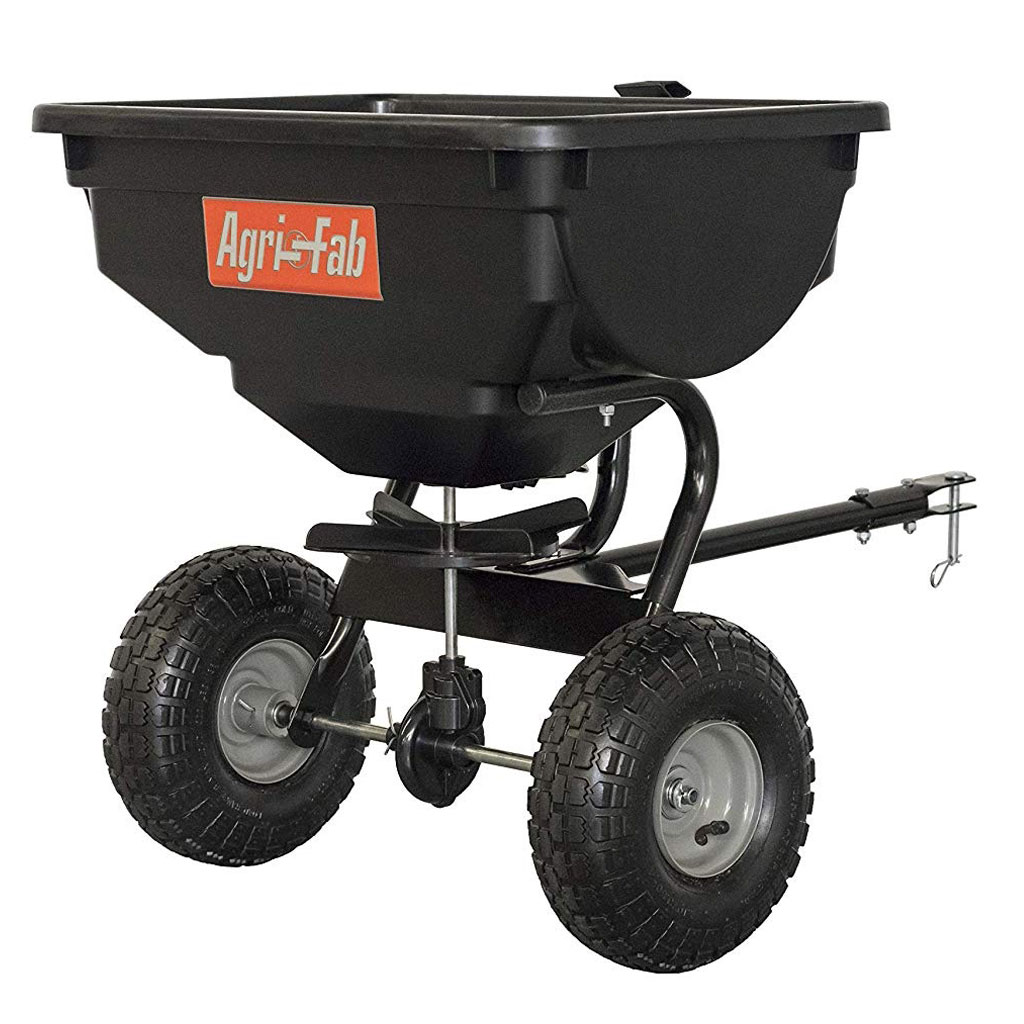

  • Description: Agri-Fab 38.55 KG (85 lb) Tow-Behind Broadcast Spreader
  • Editorial: The Agri-Fab tow-behind broadcast spreaders will make your neighbours green with
  • envy. Spread seed, fertiliser and weed control evenly and in less time. The easy
  • and convenient way to cover larger areas.
  • Replaces OEM: Agri-Fab 45-0530
  • Carton Size: (inches) (L x W x H): L 22.3" x W 16.3" x H 14.5"
  • Carton Size: (mm) (L x W x H): L 566.42 mm x W 414.02 mm x H 368.3 mm
  • Height: (inches) 25.0"
  • Height: (mm) 635 mm
  • Length: (in) 33.0"
  • Length: (mm) 838.2 mm
  • Weight: 8.164 kgs (18 lbs)
  • Width: (inches) 22.0"
  • Width: (mm) 558.8 mm
  • Wheel(s): 10" (254 mm) Pneumatic wheels.
  • Tread Pattern: Block
  • Features: Perfect for fertilizing or weed control.
  • Easy set controls allow for precise amount of product to be distributed onto lawns.
  • Rust-proof poly hopper and spreader plate increases product life.
  • Corrosion resistant hardware.
  • Maneuverable - Pneumatic tyres let you go anywhere to get the job completely done.
  • Universal mounting - Makes this broadcast spreader suitable for use with most
  • ride-on lawn mowers.
  • Made in the USA with global materials.
  • 38.55 kgs (85 lb.) capacity covers approximately 1,011 square metres (1/4 acre or
  • 14,000 sq. ft.) depending on material used and speed of application.
  • Standard Pack Quantity: 1
  • Please Note: Please Note:
  • OperatIng Instructions:-
  • Do not use powdered lawn chemicals. They do not give a satisfactory or consistent
  • broadcast pattern.
  • 1. Estimate the size of the area to be covered and calculate the amount of material
  • required.
  • 2. Set the adjustable stop according to the flow setting recommended in the
  • application chart which is printed in the operating manual. Also refer to the
  • instructions on the packaging for the material to be spread.
  • 3. The application chart is calculated for light to heavy coverage at a vehicle
  • speed of 4.5 kmh (3 mph), or 30.5 metres (100 ft.) in 23 seconds. Do not exceed 4.5
  • kph (3 mph).
  • 4. Make sure the control lever is in the "OFF" position.
  • 5. Fill the hopper, breaking up any lumpy fertilizer.
  • 6. Start the spreader in motion and then pull the control lever forward against the
  • adjustable stop to the "ON" position.
  • 7. Always move the control lever to the "OFF" position before turning or stopping.
  • 8. To ensure uniform coverage, make each pass so that the broadcast pattern
  • slightly overlaps the pattern from the previous pass. The approximate broadcast
  • widths for different materials are shown in the application chart in the operating
  • manual.
  • 9. For rectangular areas, make two passes across the short ends to create turning
  • areas. For non-rectangular areas, make two passes around the entire border.
  • 10. When broadcasting weed control fertilizers, make sure the broadcast pattern
  • does not hit evergreen trees, flowers or shrubs.
  • Safety Information:-
  • SAFETY INFORMATION
  • 1. Read the information on the chemical package for instructions and cautions on
  • handling and applying.
  • 2. Wear eye, hand and breathing protection when handling and when applying lawn or
  • garden chemicals.
  • 3. Never allow children to operate the vehicle or spreader.
  • 4. Do not use the spreader to transport people.
  • 5. Before using the spreader for the first time, ensure that you are completely
  • familiar with the functions of the towing vehicle.
  • 6. Please be aware that the towing vehicle performs differently when it is pulling
  • a load.
  • • Do not drive too close to ditches or other obstacles.
  • • Do not drive on steep inclines.
  • 7. Always begin in 1st gear and never go faster than 4.82 kph (3 mph).
  • STORING
  • 1. Empty the spreader after each use, storing left over material in its original
  • bag.
  • 2. Rinse the inside of the hopper and the exterior of the spreader and dry off
  • before storing.
  • 3. Store in a clean, dry area.
  • Brand: Agri-Fab,
  • Product Line: Broadcast Spreader, Fertilizer Spreader, Spreader - Broadcast, Spreader -
  • Fertilizer,
